Wall-E
Compact surface mounted LED luminaire of latest-generation, characterized by a very high efficiency, perfect for residential applications.
Housing: 6/10 steel sheet, painted with polyester powders to guarantee an excellent resistance to chemical agents.
Diffuser: polycarbonate Makrolon® DX.
LED modules: powered at 250mA, 350mA and 500mA.
Color temperature: 4000K, CRI>80, 3-step MacAdam.
Expected lifetime: 80.000h L80 B10 @ta25, 50.000h L80 B10 @ta45.
Power: 220-240V 50/60Hz driver, ripple free, SP system (overcharge and short circuit protection), Active PFC.
Available on request:
• DALI dimmable driver;
• 1-3h maintained emergency.
Product’s luminous flux were calculated taking into account the typical value declared by the LED manufacturer. Therefore, tolerances on production batches could be considered of +/-5%. The values declared refer to standard coloring 4000K. If not explicitly indicated, flux could deviates by -5% for 3000K, +5% for 5000/5700K.
Documents
Photometric Data
Catalog page

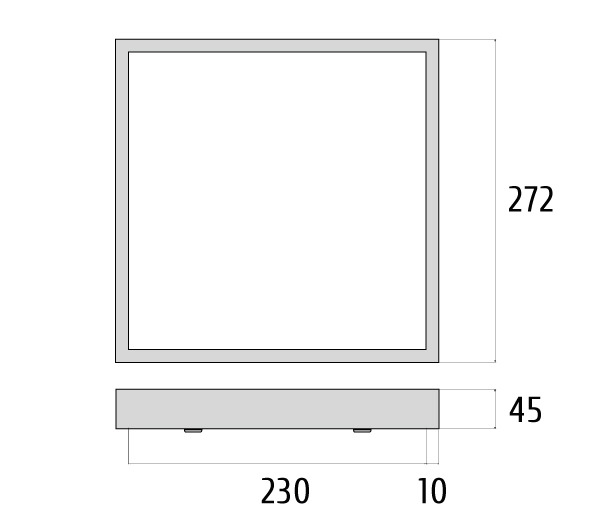

2D Drawing
UE Declaration of conformity
Instruction sheet
Photo HD
Components Datasheets
Available colors:

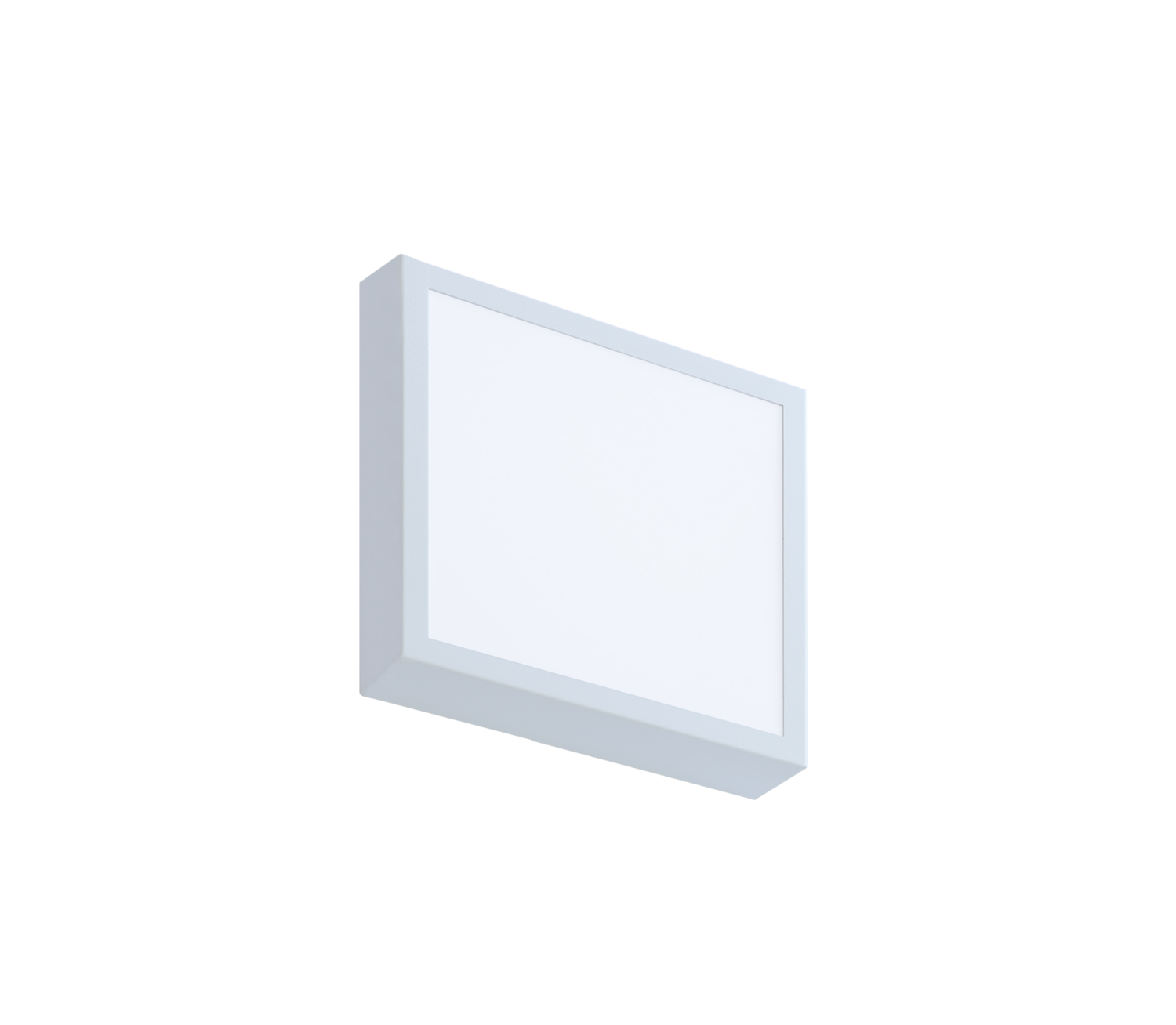

Bianco RAL 9003

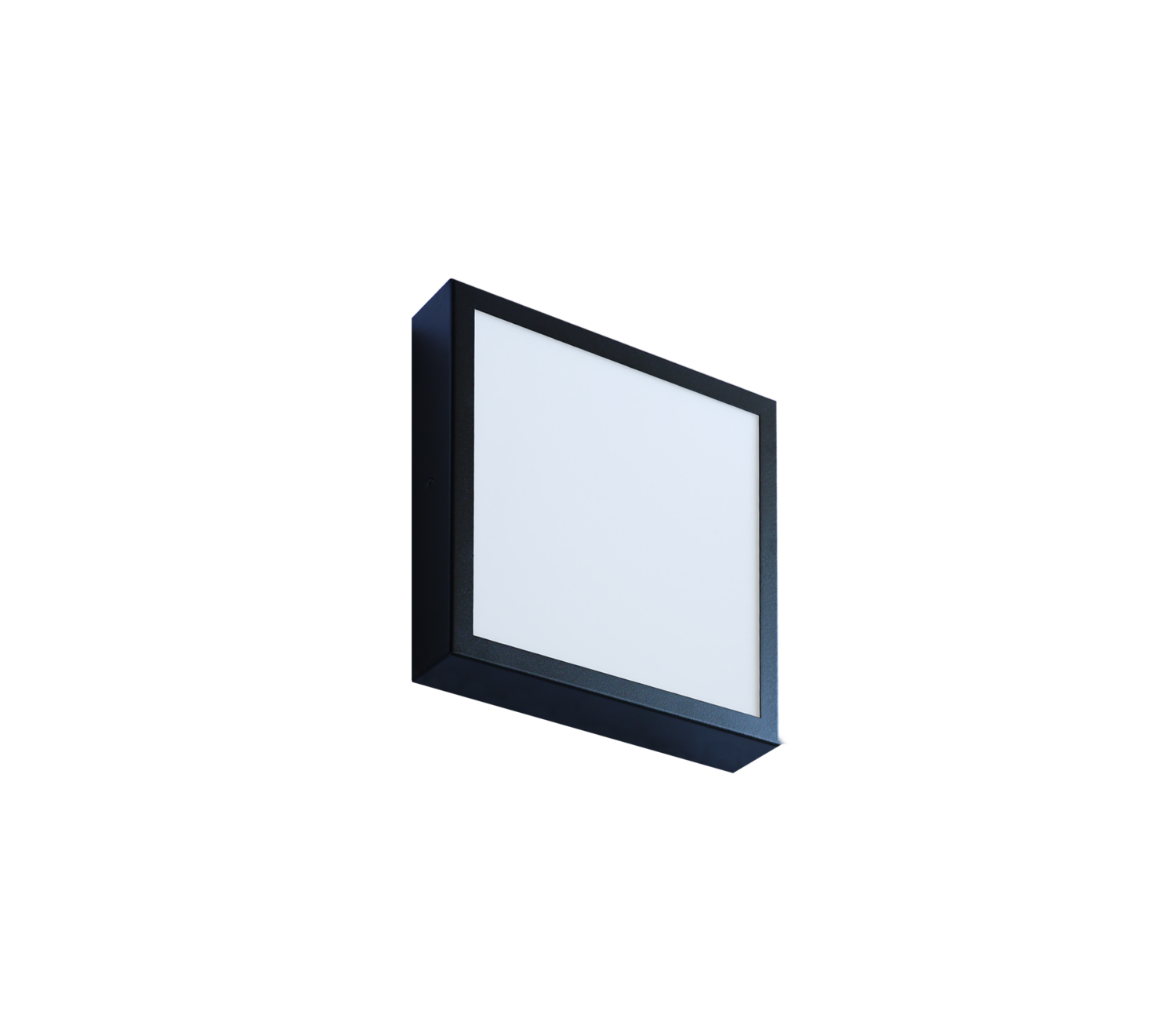

Nero RAL 9005
Application example:
Photometric Data:
| CODE | DESCRIPTION | CURRENT (A) | W | TYPICAL FLUX (LM) | NET OUTPUT (LM) | NET WEIGHT (KG) | ENERGY CLASS | DATASHEET |
|---|---|---|---|---|---|---|---|---|
| 630641.107 | 1 LM 840 | 250 | 8 | 1350 | 840 | 1,55 |  |
|
| 630641.111 | 1 LM 840 | 350 | 11 | 1850 | 1150 | 1,70 | |
|
| 630641.115 | 1 LM 840 | 500 | 16 | 2555 | 1590 | 1,75 | |
|
| 630641.106 | 1 LM 830 | 250 | 8 | 1283 | 800 | 1,55 | |
|
| 630641.110 | 1 LM 830 | 350 | 11 | 1757 | 1095 | 1,70 | |
|
| 630641.114 | 1 LM 830 | 500 | 16 | 2430 | 1510 | 1,75 | |
