C Luce

Gemini MAX Pro

New generation LED floodlight, born to combine an essential and a contemporary design, Antares’ technological evolution an extension of Gemini Pro family. Perfect for lighting areas as gardens, entrances, buildings, forecourts, facades and small- medium sports facilities.

Housing and frame: in die-cast aluminum. Housing with cool-ing fins for maximum heat dissipation.
Lateral goniometric scale for quick tilt adjustment.
Paintwork: thermosetting polyester powder, prior degreasing and phosphochromatizing process that ensure an extremely high resistance to chemical and atmospheric agents.
Safety glass: extra clear tempered 4 mm.
LED modules 8×2: anti‑sulfur, CRI>70, CCT 4000K, SDCM 3.
Lens: 2×2 multiple cluster in PMMA Anti UV UL94, asymmetrical optic, asymmetrical SPORT optic and street optic with light distribution ME3M, Samsung LH502D.
Lumen maintenance 700mA version: 80,000h L80 B10 @ta25, 50,000h L80 B10 @ta50.
Lumen maintenance 850mA version: 80,000h L80 B10 @ta25, 50,000h L80 B10 @ta40.
Power supply: 220 ÷ 240V 50-60Hz with electronic ballast, surge protection 6/10kV, waterproof 3p fast plug connector.
Bracket: 3 mm slotted and thick shaped steel.

Available on request:
• DALI dimmable driver and output reduction with Vmidnight system;
• SPD 12kV;
• CRI80-CRI90;
• amber lenses for AS e ST ME3M;
• additional optics (CYC,15°,45°,60°,100°);
• Zhaga: Socket 4 pin (Zhaga Book 18);
• special paintwork: colour and type of corrosion painting cycle (C5).

Accessories on request:
• “T” pole adapter ø 40/60 mm;
• protection grid (IK10)*.

CCT 4000K Standard, on request:
2200K, 2700K, 3000K, 5000K

Product’s luminous flux were calculated taking into account the typical value declared by the LED manufacturer.  Therefore, tolerances on production batches could be considered of +/-5%. The values declared refer to standard coloring 4000K.  If not explicitly indicated, flux could deviates by -5% for 3000K, +5% for 5000/5200K.

ATTENTION
CRI90 version or any special setup available on request, shall be agreed with the sales representative.

Documents

Photometric Data

Catalog page

2D Drawing

UE Declaration of conformity

Instruction sheet

3 LM 740

4 LM 740

5 LM 740

Available colors:

Antracite

Application example:

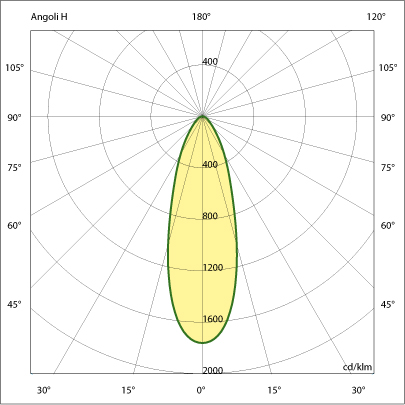

Photometric Data:

AS

AS Sport

ST ME3M

CYC | 15° | 45° | 60° a richiesta

CODE DESCRIPTION CURRENT (A) W TYPICAL FLUX (LM) NET OUTPUT (LM) NET WEIGHT (KG) ENERGY CLASS DATASHEET
273643.382 AS-3 LM 740 700 96 19560 14475 10,95
273643.482 AS-4 LM 740 700 128 26080 19300 11,06
273643.582 AS-5 LM 740 700 160 32600 24125 11,40
273643.682 AS-6 LM 740 700 192 39120 28950 11,51
273643.782 AS-7 LM 740 700 224 45640 33775 12,14
273643.792 AS-7 LM 740 850 273 52000 38480 12,14
274643.382 AS Sport-3 LM 740 700 96 19560 16435 10,95
274643.482 AS Sport-4 LM 740 700 128 26080 21910 11,06
274643.582 AS Sport-5 LM 740 700 160 32600 27385 11,40
274643.682 AS Sport-6 LM 740 700 192 39120 32865 11,51
274643.782 AS Sport-7 LM 740 700 224 45640 38340 12,14
274643.792 AS Sport-7 LM 740 850 273 52000 43680 12,14
275643.382 ST ME3M-3 LM 740 700 96 19560 16355 10,95
275643.482 ST ME3M-4 LM 740 700 128 26080 21805 11,06
275643.582 ST ME3M-5 LM 740 700 160 32600 27255 11,40
275643.682 ST ME3M-6 LM 740 700 192 39120 32705 11,51
275643.782 ST ME3M-7 LM 740 700 224 45640 38160 12,14
275643.792 ST ME3M-7 LM 740 850 273 52000 43475 12,14
